Specifications | |
---|---|
Product type | Amplifier |
Amplifier type | Class D |
Amplification chip | MA5332MS |

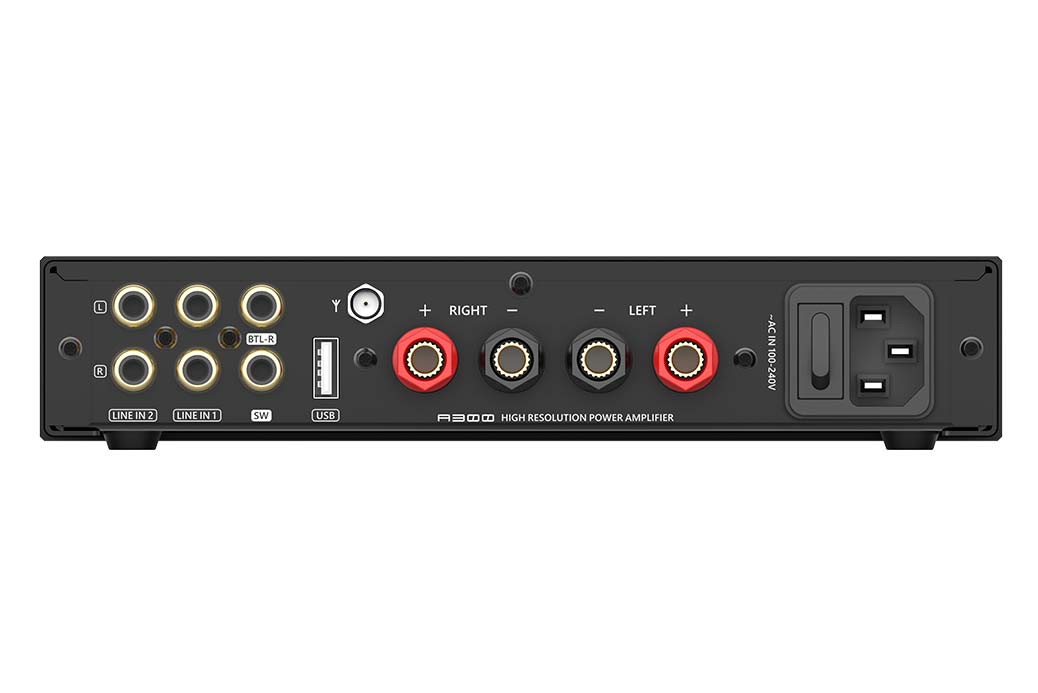

Inputs | Bluetooth 5.0 2x Stereo RCA inputs 1x USB-A |
Outputs | Speaker terminals 1x BTL output 1x Subwoofer output |
Output power | 2x 165W @ 4Ω 2x 85W @ 8Ω BTL Mode : 1x 330W @ 4-8Ω |
THD+N | 0.004% |
SNR | 103dB |
Channel separation | 85dB |
Cut-off frequency (high pass mode) | 50Hz |
Input sensitivity | 280mV |
Input impedance | 22kΩ |
General | |
---|---|
Consumption | 40W |
Dimensions | 210.5 x 198 x 41mm |
Weight | 1.3kg |
Color | Black |
