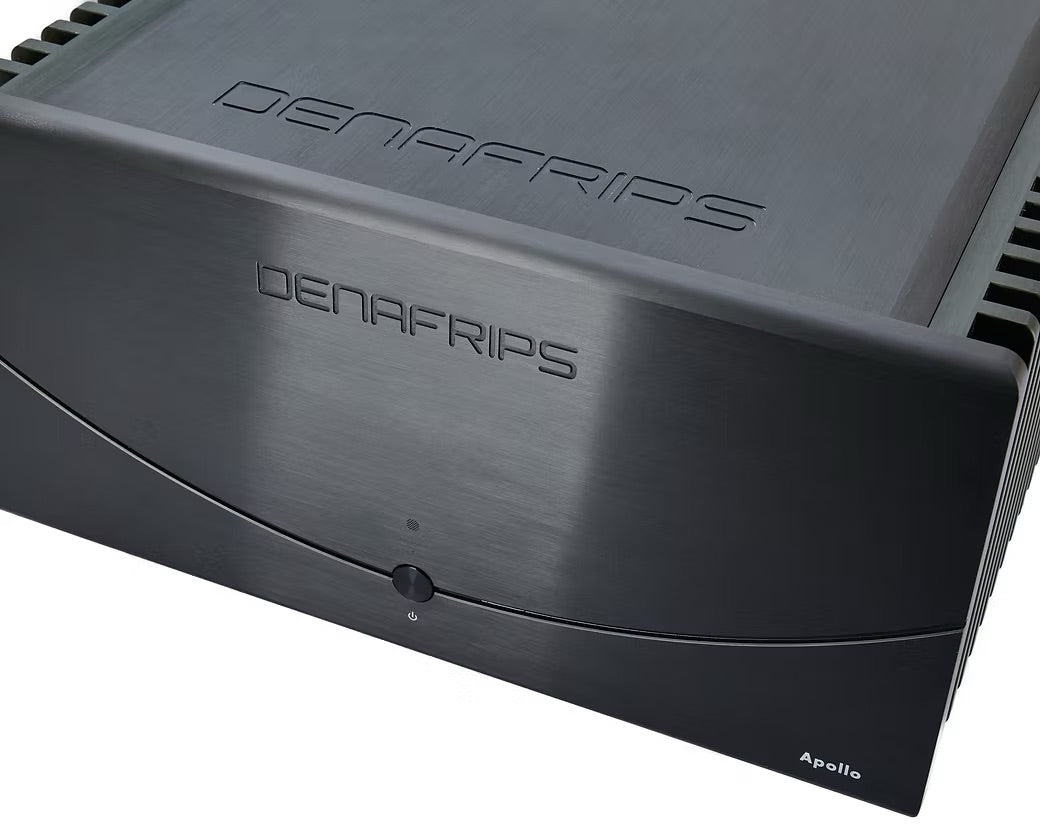

The APOLLO High-End Stereo Power Amplifier is here! It is a beefed-up version of the award-winning HYPERION, fully discrete, true balanced, class AB power amplifier. The output power is rated at conservative of 225W per channel into 8ohms, 450W into 4ohms (both channels driven, rms).

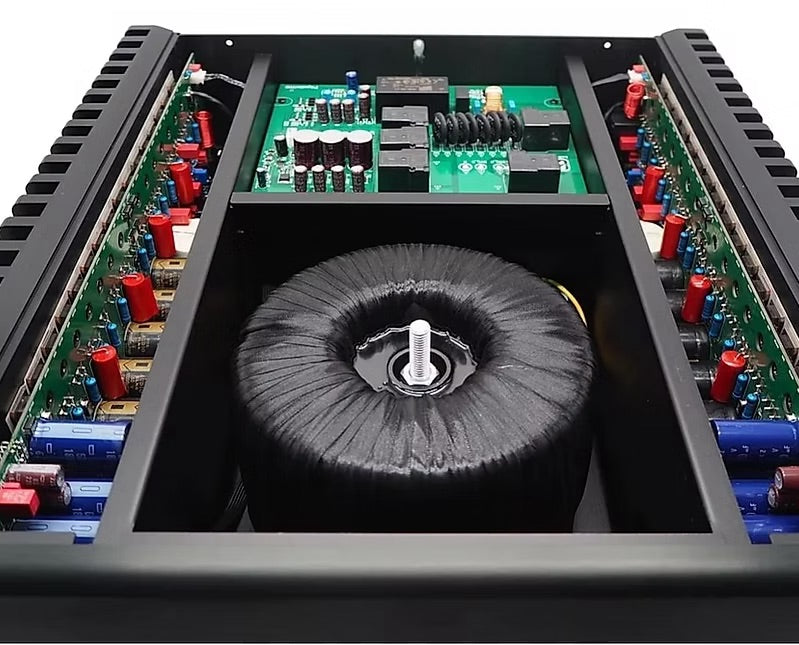

The 2000VA toroid transformer is custom-made for audio with copper shielding. Total 16pairs of BJT transistors per channel, coupled with large reservoir capacitors and fast switching action Schottky diodes, delivering more than adequate DC power rails to the modular power amplifier modules.
True balanced input are being amplified (both +ve and -ve signal w.r.t gnd) by the modular power amplifier circuitry. Delivering power of 225W per channel into 8ohms, and 450W per channel into 4ohms. Its superior driving capacity is capable to drive large floor stander and room filling sound effortlessly.
Highlight | Class-AB, True Balanced, Fully Discrete Power Amp |
Input | XLR |
Input Impedance | 22k Ohms |
Input Sensitivity | 2.0Vrms |
Output | 4mm Speaker Binding Post |
Gain | 26dB |
Output Power | 250w RMS per channel into 8ohms |
500w RMS per channel into 4ohms | |
AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage) |
Power Consumption | 0.5W (Standby), 250W (Idle), 1180W (Operational) |
Frequency Response | 10-50k(-2.2dB) |
THD | 0.00% |
S/N Ratio | 118dB |
Dynamic Range | >121dB |
Stereo Crosstalk | -110dB |
Dimension | 435W x 470D x 240H mm |
Weight | 55 Kg |
Color | Silver / Black |
